SiLM824x系列

双通道死区可编程的 33V, 4A 隔离驱动

样片申请

SiLM824x_AQ Datasheet SiLM824x Datasheet SiLM8246/SiLM8247/SiLM8248 Datasheet

产品概述

产品特性

安规认证

典型应用图

产品概述

SiLM824x 系列是具有 4A/6A 源电流/灌电流能力，超高 CMTI，并支持不同配置的双通道隔离栅极驱动器。 SLMi8243/46 配置为双输入，高/低半桥驱动器；SiLM8244/47 配置为单输入，高/低半桥驱动器；而 SiLM8245/48 配置为双输入，双输出驱动器。SiLM8243/44/46/47 提供可编程死区(DT)功能。将DIS引脚拉低会同时关闭两个输出，并允许在开路或拉高时正常运行。所有输出驱动器的 VDDA/B 电源电压最高到33V。3V 至 18V 的 VDDI 宽范围输入，使得驱动器适合模拟和数字控制器接口，并且所有电源电压引脚都有欠压锁定 (UVLO) 保护功能。

SiLM824x 提供 SOP16，SOP14W, SOP16W 和 LGA13 四种封装。SOP16 封装支持 3.0kVRMS 隔离耐压，SOP14W 和 SOP16W 封装支持 5kVRMS 隔离耐压， LGA13 封装支持 2.5kVRMS 隔离耐压。

高 CMTI、低传输延迟、小封装、灵活性的配置使得 SiLM824x 非常适合作为 MOSFET/IGBT、SiC 和 GaN 场效应管的隔离驱动。

产品特性

4.0A/6.0A 峰值输出电流

48ns (典型) 传输延迟

18ns (最大) 器件间延时匹配

20ns (最大) 脉宽失真

150kV/us (最小) 共模瞬态抗扰度 (CMTI)

输出驱动器电源电压最高到33V

5V 输入反向耐压能力

工作结温范围, TJ: –40°C ~ +150°C

符合车规认证AEC-Q100

两通道间的功能绝缘：1500V(SOP16/SOP16W), 1850V(SOP14W)，700V(LGA13)

安规认证

SOP16: 符合 UL 1577 1 分钟的 3.0kVRMS

SOP14W/SOP16W: 符合 UL 1577 1 分钟的 5kVRMS

符合 GB4943.1-2022 的 CQC 认证

符合 DIN V VDE 0884-11(计划中)

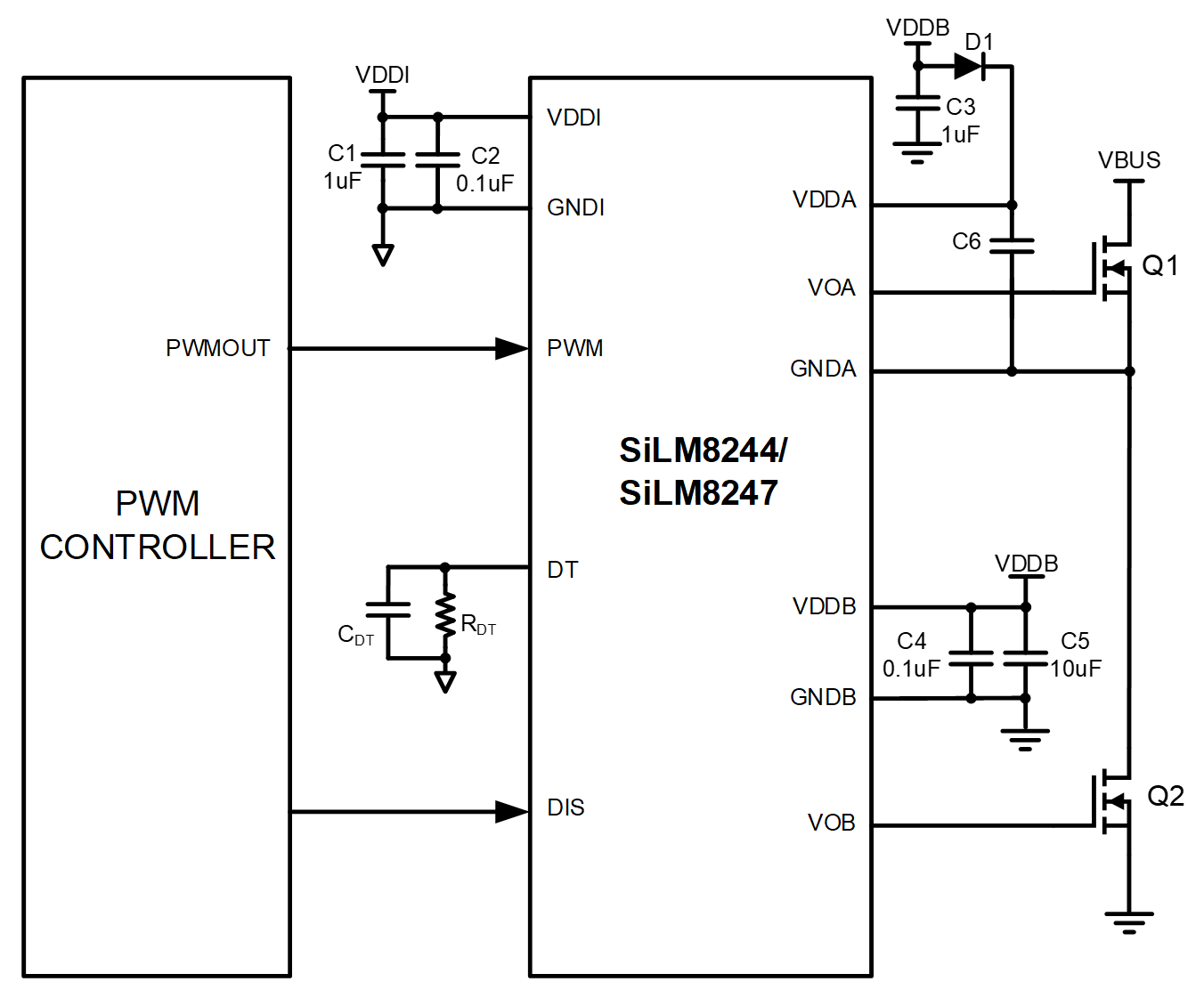

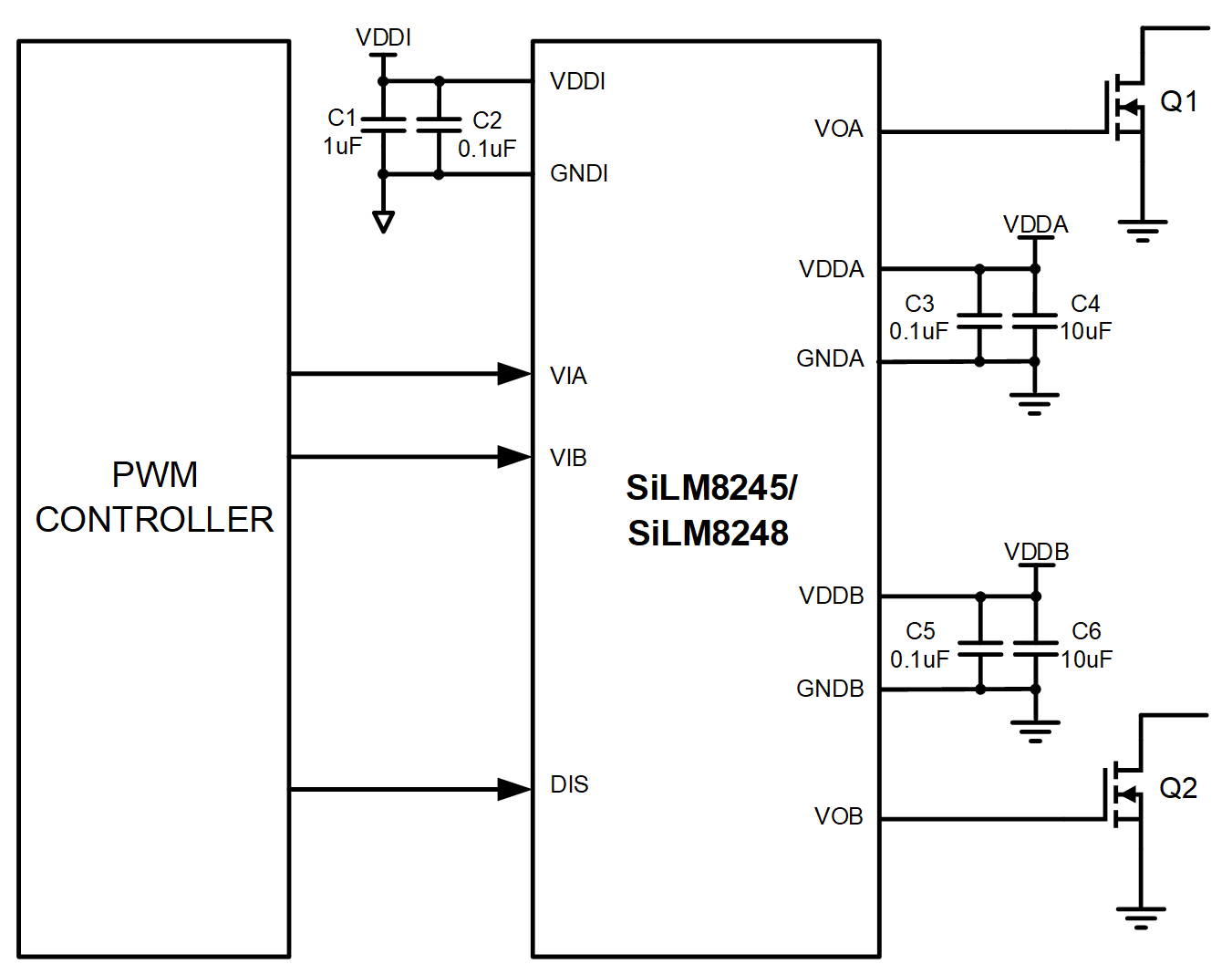

典型应用图

产品参数表

展开过滤器

Part Number	Power Switch	IOH/IOL (A)	Output VCC/VDD (V)	Input VCC (V)	Prop. Delay（ns）	Input Config	Program Deadtime	Overlap Protection	CMTI (kV/μs) Min.	VISO(Vrms)	Operating Temp （℃）	Package Group	Packing/QTY
SiLM8243BBCL-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	9-33	3-18	48	VIA/VIB	Y	Y	150	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8243ABCL-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	6-33	3-18	48	VIA/VIB	Y	Y	150	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8243GBCL-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	4-33	3-18	48	VIA/VIB	Y	Y	150	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8243DBCL-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	13.5-33	3-18	48	VIA/VIB	Y	Y	150	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8244BBCL-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	9-33	3-18	48	PWM	Y	Y	150	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8244ABCL-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	6-33	3-18	48	PWM	Y	Y	150	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8244GBCL-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	4-33	3-18	48	PWM	Y	Y	150	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8244DBCL-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	13.5-33	3-18	48	PWM	Y	Y	150	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8245BBCL-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	9-33	3-18	48	VIA/VIB	-	-	150	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8245ABCL-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	6-33	3-18	48	VIA/VIB	-	-	150	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8245GBCL-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	4-33	3-18	48	VIA/VIB	-	-	150	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8245DBCL-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	13.5-33	3-18	48	VIA/VIB	-	-	150	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8243ABCG-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	6-33	3-18	48	VIA/VIB	Y	Y	150	5000	–40 ~ 125	SOP16W	Reel/1500
SiLM8243GBCG-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	4-33	3-18	48	VIA/VIB	Y	Y	150	5000	–40 ~ 125	SOP16W	Reel/1500
SiLM8244ABCG-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	6-33	3-18	48	PWM	Y	Y	150	5000	–40 ~ 125	SOP16W	Reel/1500
SiLM8244GBCG-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	4-33	3-18	48	PWM	Y	Y	150	5000	–40 ~ 125	SOP16W	Reel/1500
SiLM8245ABCG-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	6-33	3-18	48	VIA/VIB	-	-	150	5000	–40 ~ 125	SOP16W	Reel/1500
SiLM8245GBCG-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	4-33	3-18	48	VIA/VIB	-	-	150	5000	–40 ~ 125	SOP16W	Reel/1500
SiLM8243ABCP-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	6-33	3-18	48	VIA/VIB	Y	Y	150	5000	–40 ~ 125	SOP14W	Reel/1500
SiLM8243GBCP-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	4-33	3-18	48	VIA/VIB	Y	Y	150	5000	–40 ~ 125	SOP14W	Reel/1500
SiLM8244ABCP-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	6-33	3-18	48	PWM	Y	Y	150	5000	–40 ~ 125	SOP14W	Reel/1500
SiLM8244GBCP-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	4-33	3-18	48	PWM	Y	Y	150	5000	–40 ~ 125	SOP14W	Reel/1500
SiLM8245ABCP-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	6-33	3-18	48	VIA/VIB	-	-	150	5000	–40 ~ 125	SOP14W	Reel/1500
SiLM8245GBCP-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	4-33	3-18	48	VIA/VIB	-	-	150	5000	–40 ~ 125	SOP14W	Reel/1500
SiLM8245DBCP-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	13.5-33	3-18	48	VIA/VIB	-	-	150	5000	–40 ~ 125	SOP14W	Reel/1500
SiLM8243BBCL-AQ	IGBT/MOSFET/SiC/GaN	4.0/6.0	9-33	3-18	48	VIA/VIB	Y	Y	150	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8243ABCL-AQ	IGBT/MOSFET/SiC/GaN	4.0/6.0	6-33	3-18	48	VIA/VIB	Y	Y	150	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8243GBCL-AQ	IGBT/MOSFET/SiC/GaN	4.0/6.0	4-33	3-18	48	VIA/VIB	Y	Y	150	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8243DBCL-AQ	IGBT/MOSFET/SiC/GaN	4.0/6.0	13.5-33	3-18	48	VIA/VIB	Y	Y	150	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8244BBCL-AQ	IGBT/MOSFET/SiC/GaN	4.0/6.0	9-33	3-18	48	PWM	Y	Y	150	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8244ABCL-AQ	IGBT/MOSFET/SiC/GaN	4.0/6.0	6-33	3-18	48	PWM	Y	Y	150	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8244GBCL-AQ	IGBT/MOSFET/SiC/GaN	4.0/6.0	4-33	3-18	48	PWM	Y	Y	150	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8244DBCL-AQ	IGBT/MOSFET/SiC/GaN	4.0/6.0	13.5-33	3-18	48	PWM	Y	Y	150	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8245BBCL-AQ	IGBT/MOSFET/SiC/GaN	4.0/6.0	9-33	3-18	48	VIA/VIB	-	-	150	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8245ABCL-AQ	IGBT/MOSFET/SiC/GaN	4.0/6.0	6-33	3-18	48	VIA/VIB	-	-	150	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8245GBCL-AQ	IGBT/MOSFET/SiC/GaN	4.0/6.0	4-33	3-18	48	VIA/VIB	-	-	150	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8245DBCL-AQ	IGBT/MOSFET/SiC/GaN	4.0/6.0	13.5-33	3-18	48	VIA/VIB	-	-	150	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8243ABCG-AQ	IGBT/MOSFET/SiC/GaN	4.0/6.0	6-33	3-18	48	VIA/VIB	Y	Y	150	5000	–40 ~ 125	SOP16W	Reel/1500
SiLM8243GBCG-AQ	IGBT/MOSFET/SiC/GaN	4.0/6.0	4-33	3-18	48	VIA/VIB	Y	Y	150	5000	–40 ~ 125	SOP16W	Reel/1500
SiLM8244ABCG-AQ	IGBT/MOSFET/SiC/GaN	4.0/6.0	6-33	3-18	48	PWM	Y	Y	150	5000	–40 ~ 125	SOP16W	Reel/1500
SiLM8244GBCG-AQ	IGBT/MOSFET/SiC/GaN	4.0/6.0	4-33	3-18	48	PWM	Y	Y	150	5000	–40 ~ 125	SOP16W	Reel/1500
SiLM8245ABCG-AQ	IGBT/MOSFET/SiC/GaN	4.0/6.0	6-33	3-18	48	VIA/VIB	-	-	150	5000	–40 ~ 125	SOP16W	Reel/1500
SiLM8245GBCG-AQ	IGBT/MOSFET/SiC/GaN	4.0/6.0	4-33	3-18	48	VIA/VIB	-	-	150	5000	–40 ~ 125	SOP16W	Reel/1500
SiLM8243ABCP-AQ	IGBT/MOSFET/SiC/GaN	4.0/6.0	6-33	3-18	48	VIA/VIB	Y	Y	150	5000	–40 ~ 125	SOP14W	Reel/1500
SiLM8243GBCP-AQ	IGBT/MOSFET/SiC/GaN	4.0/6.0	4-33	3-18	48	VIA/VIB	Y	Y	150	5000	–40 ~ 125	SOP14W	Reel/1500
SiLM8244ABCP-AQ	IGBT/MOSFET/SiC/GaN	4.0/6.0	6-33	3-18	48	PWM	Y	Y	150	5000	–40 ~ 125	SOP14W	Reel/1500
SiLM8244GBCP-AQ	IGBT/MOSFET/SiC/GaN	4.0/6.0	4-33	3-18	48	PWM	Y	Y	150	5000	–40 ~ 125	SOP14W	Reel/1500
SiLM8245ABCP-AQ	IGBT/MOSFET/SiC/GaN	4.0/6.0	6-33	3-18	48	VIA/VIB	-	-	150	5000	–40 ~ 125	SOP14W	Reel/1500
SiLM8245GBCP-AQ	IGBT/MOSFET/SiC/GaN	4.0/6.0	4-33	3-18	48	VIA/VIB	-	-	150	5000	–40 ~ 125	SOP14W	Reel/1500
SiLM8246GAHB-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	4-33	3-18	45	VIA/VIB	Y	Y	150	2500	–40 ~ 125	LGA5X5-13	Reel/5000
SiLM8246AAHB-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	6-33	3-18	45	VIA/VIB	Y	Y	150	2500	–40 ~ 125	LGA5X5-13	Reel/5000
SiLM8246BAHB-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	9.1-33	3-18	45	VIA/VIB	Y	Y	150	2500	–40 ~ 125	LGA5X5-13	Reel/5000
SiLM8246DAHB-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	13.5-33	3-18	45	VIA/VIB	Y	Y	150	2500	–40 ~ 125	LGA5X5-13	Reel/5000
SiLM8247GAHB-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	4-33	3-18	45	PWM	Y	Y	150	2500	–40 ~ 125	LGA5X5-13	Reel/5000
SiLM8247AAHB-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	6-33	3-18	45	PWM	Y	Y	150	2500	–40 ~ 125	LGA5X5-13	Reel/5000
SiLM8247BAHB-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	9.1-33	3-18	45	PWM	Y	Y	150	2500	–40 ~ 125	LGA5X5-13	Reel/5000
SiLM8247DAHB-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	13.5-33	3-18	45	PWM	Y	Y	150	2500	–40 ~ 125	LGA5X5-13	Reel/5000
SiLM8248GAHB-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	4-33	3-18	45	VIA/VIB	-	-	150	2500	–40 ~ 125	LGA5X5-13	Reel/5000
SiLM8248AAHB-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	6-33	3-18	45	VIA/VIB	-	-	150	2500	–40 ~ 125	LGA5X5-13	Reel/5000
SiLM8248BAHB-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	9.1-33	3-18	45	VIA/VIB	-	-	150	2500	–40 ~ 125	LGA5X5-13	Reel/5000
SiLM8248DAHB-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	13.5-33	3-18	45	VIA/VIB	-	-	150	2500	–40 ~ 125	LGA5X5-13	Reel/5000
